索尼新品 2019 款  D21 小蜜蜂 领夹麦克风 无线  UWP-D21(UWPD21) UWP-D 腰包式无线麦克风套件 bodypack wireless microphone package

索尼新品 2019 款 D21 小蜜蜂 领夹麦克风 无线 UWP-D21(UWPD21) UWP-D 腰包式无线麦克风套件 bodypack wireless microphone package

3500.00

咨询

UWP-D 系列具有出色的音质、数字处理能力、可靠的射频传输能力、真正双调谐器分集接收及各种易用功能,是 ENG(电子新闻采访)、EFP(电子现场制作)、纪录片以及婚礼现场拍摄的理想之选。

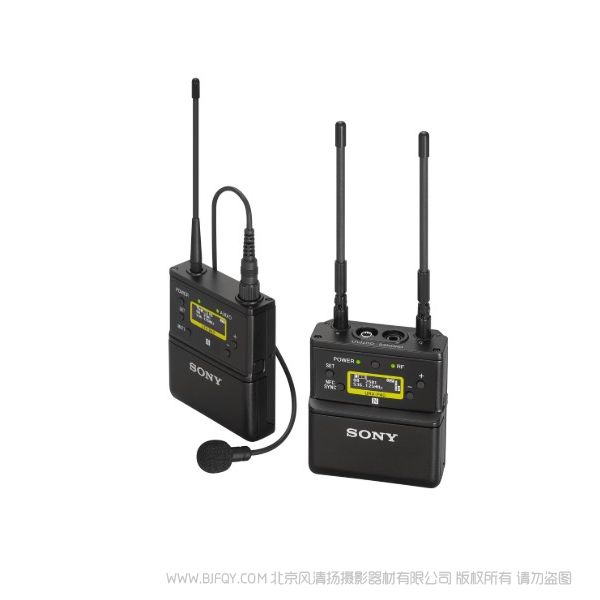

UWP-D21 腰包式无线麦克风套件包括 UTX-B40 腰包式发射器、URX-P40 接收器、ECM-V1BMP 全指向领夹式麦克风及配件。



  • 采用索尼数字音频处理技术的高品质音效
  • NFC 同步功能可用于快速方便的安全通道设置(从 URX-P03、URX-P03D 及 URX-S03D 接收器与 UTX-B40 发射器的红外同步功能)
  • 真正的双调谐器分集,提供稳定的信号接收能力
  • 自动增益模式下的音量控制功能
  • +15 dB 增益音量增强模式,可用于非麦克风音频
  • 线路输入
  • 提供通道内存,可用于两台发射器操作时快速切换接收器频率
  • 发送到接收器的发射器频率,用于将多个接收器匹配到一个发射器
  • 适用于监控的监听耳机输出
  • 将接收器用作耳式监视器的监视器模式
  • 可调静音功能
  • 兼容索尼 WL-800/UWP/UWP-D 系列
  • 接收器输出电平控制
  • 高可见度 OLED 显示屏,适用于室内外环境

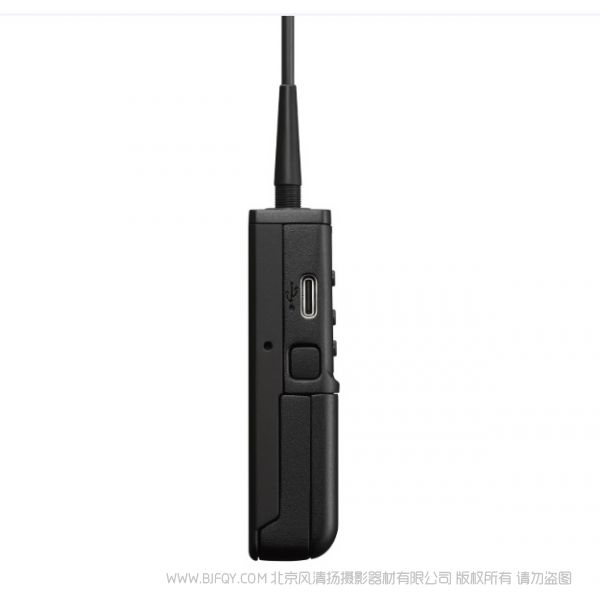

  • 电源 USB 接口
  • 数字音频接口支持 SMAD-P5 MI 热靴适配器(选购)*


* 有关支持此功能的摄像机详细信息,请访问索尼网站。

属性

数字音频处理技术,提供出色音质

索尼先进的数字音频处理技术,可提供出色音质,并能改善瞬态响应性能。新款 [选购] 数字音频接口可通过 SMAD-P5 MI 热靴适配器利用多款索尼专业摄录一体机和 Alpha 可更换镜头摄像机直接进行数字录音,绕过 A/D 和 D/A 转换阶段,从而进一步提供出色音质。

无缝摄录一体机集成

可与兼容的* 索尼摄录一体机集成(需要 SMAD-P5 MI 热靴适配器),在摄像机寻像器中显示音频信息,如射频电平表、音频静音状态和发射器电池电量不足提醒。无需电缆连接,通过 SMAD-P5 即可将音频信号从接收器传输到摄像机。无线接收器还能接收来自摄像机的电源,通过摄像机和接收器之间的同步电源开/关可实现更有效的电源管理。

* 请参阅有关 SMAD-P5 兼容性的详细信息

快速、简单的频率设置

索尼的用户友好型 NFC 同步功能可在发射器和接收器之间实现快速、直观的安全通道设置。

轻便、紧凑型设计

系统尺寸和重量进一步缩减,移动性进一步提升,使其适用于包含新闻、纪录片、婚礼和远程制作等在内的广泛应用。该接收器轻便小巧,是使用小型摄录一体机和可更换镜头数字摄像机的理想之选。

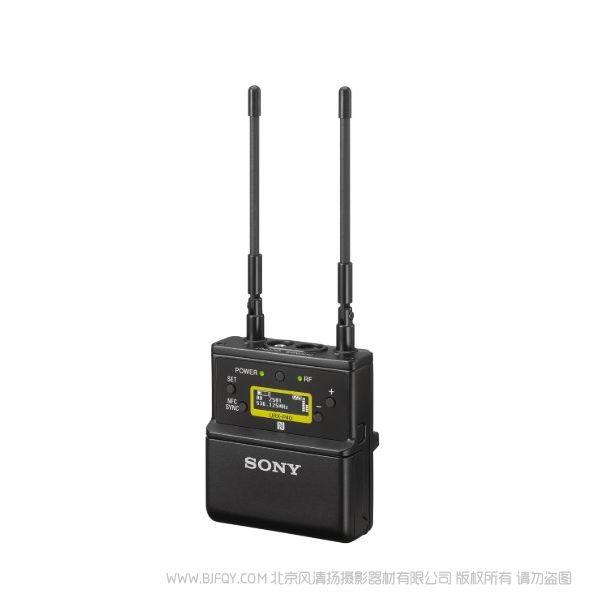

URX-P40 便携式接收器

振荡器类型

晶体控制 PLL 合成器

接收类型

真分集式

天线类型

1/4 λ 波长有线天线(角度可调)

载波频率

14UC: 470.125 MHz 至 541.875 MHz(UHF-TV 14 至 25 通道)
25UC: 536.125 MHz 至 607.875 MHz(UHF-TV 25 至 36 通道)
42LA: 638.125 MHz 至 697.875 MHz(UHF-TV 42 至 51 通道)
90UC: 941.625 MHz 至 951.875 MHz、953.000 MHz 至 956.125 MHz、956.625 MHz 至 959.625 MHz
21CE: 470.025 MHz 至 542.000 MHz(UHF-TV 21 至 29 通道)
33CE: 566.025 MHz 至 630.000 MHz(UHF-TV 33 至 40 通道)
42CE: 638.025 MHz 至 694.000 MHz(UHF-TV 42 至 48 通道)
38CN: 710.025 MHz 至 782.000 MHz(UHF-TV 38 至 46 通道)
E: 794.125 MHz 至 805.875 MHz
BJ: 806.125 MHz 至 809.750 MHz
KR: 925.125 MHz 至 937.500 MHz

频率响应

23 Hz 至 18 kHz(典型,UC、U、CE、LA、CN、E、KR 型号)
40 Hz 至 15 kHz(典型,J 型号)

信噪比

60 dB(1 kHz 正弦波,5 kHz 调制)

失真 (T.H.D)

0.9% 或更低(1 kHz 正弦波,5 kHz 调制)

音频延迟

约 0.35 毫秒(模拟输出)
约 0.24 毫秒(数字输出)

音频输出接口

3.5 mm 直径 3 极锁定迷你插孔,外部连接

音频输出水平

–60 dBV(3.5 mm 直径 3 极锁定迷你插孔,模拟输出,0 dB 音频输出电平)
–20 dBFS(外部连接,数字输出,0 dB 音频输出电平)
-50 dBFS(外部连接,模拟输出,0 dB 音频输出电平)

模拟音频输出调整范围

-12dB 至 +12dB(3dB 步进)

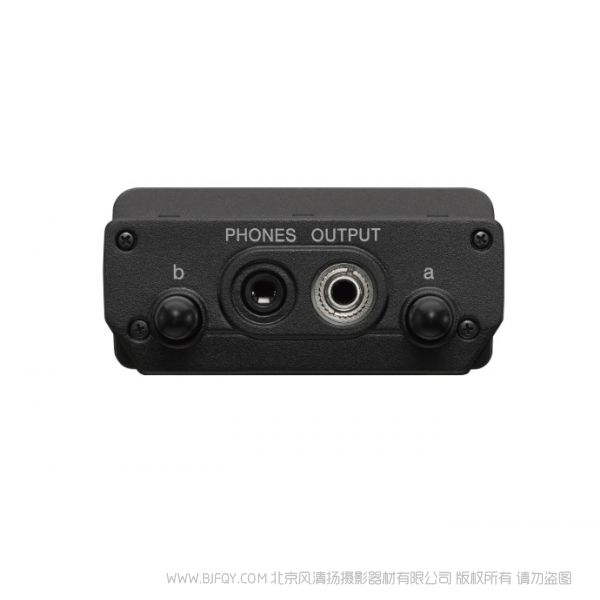

监听耳机输出接口

3.5 mm 直径迷你插孔

耳机输出电平

最大 10mW (16 ohm)

单音信号频率

在 UWP-D 压缩扩展器模式下: 32.382 kHz
在 UWP 压缩扩展器模式下: 32 kHz
在 WL800 压缩扩展器模式下: 32.768 kHz

显示器

OLED

电源要求

DC 3.0 V(两节 LR6/AA 型碱性电池)
DC 5.0 V(由 USB Type-C 连接器提供)

电池寿命*

约六小时
*电池寿命由两节索尼 LR6/AA 型碱性电池在 25 °C (77 °F) 条件下测得,DISPLAY MODE 设置为 AUTO OFF。

操作温度

0 °C 至 50 °C(32 °F 至 122 °F)

储存/运输温度

-20 °C 至 +55 °C(-4 °F 至 +131 °F)

尺寸

63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.)(宽/高/深,不含天线)

重量

约 131 g (4.6 oz)(不含电池)

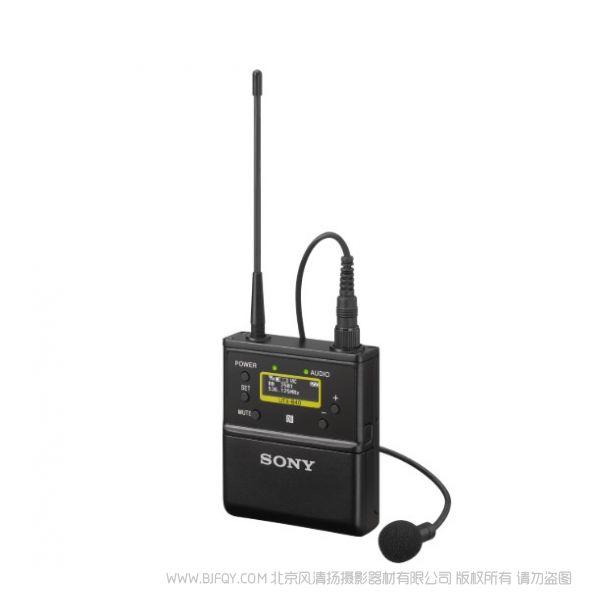

UTX-B40 腰包式发射器

振荡器类型

晶体控制 PLL 合成器

天线类型

1/4 λ 波长有线天线

载波频率

14UC: 470.125 MHz 至 541.875 MHz(UHF-TV 14 至 25 通道)
25UC: 536.125 MHz 至 607.875 MHz(UHF-TV 25 至 36 通道)
42LA: 638.125 MHz 至 697.875 MHz(UHF-TV 42 至 51 通道)
90UC: 941.625 MHz 至 951.875 MHz、953.000 MHz 至 956.125 MHz、956.625 MHz 至 959.625 MHz
21CE: 470.025 MHz 至 542.000 MHz(UHF-TV 21 至 29 通道)
33CE: 566.025 MHz 至 630.000 MHz(UHF-TV 33 至 40 通道)
42CE: 638.025 MHz 至 694.000 MHz(UHF-TV 42 至 48 通道)
38CN: 710.025 MHz 至 782.000 MHz(UHF-TV 38 至 46 通道)
E: 794.125 MHz 至 805.875 MHz
BJ: 806.125 MHz 至 809.750 MHz
KR: 925.125 MHz 至 937.500 MHz

射频输出功率

30 mW/5 mW 可选(UC、U、CE、LA、CN 型号)
10 mW/2 mW 可选(J、E、KR 型号)

薄膜类型

驻极体电容

指向性

全指向

输入接口

3.5 mm 直径 3 极锁定迷你插孔

参考音频输入电平

-60 dBV(麦克风输入,GAIN MODE 设置为 NORMAL,0 dB 衰减)
+4 dBu(线路输入)

音频衰减器调整范围

0 dB 到 27 dB(3 dB 步长)

频率响应

23 Hz 至 18 kHz(典型,UC、U、CE、LA、CN、E、KR 型号)
40 Hz 至 15 kHz(典型,J 型号)

信噪比

60 dB(-60 dBV,1 kHz 输入)
102 dB(GAIN MODE 设置为 AUTO GAIN、最大)
96 dB(GAIN MODE 设置为 NORMAL、最大)

失真

0.9% 或更低(-60 dBV,1 kHz 输入)

音频延迟

约 0.35 ms

单音信号频率

在 UWP-D 压缩扩展器模式下: 32.382 kHz
在 UWP 压缩扩展器模式下: 32 kHz
在 WL800 压缩扩展器模式下: 32.768 kHz

显示器

OLED

电源要求

DC 3.0 V(两节 LR6/AA 型碱性电池)
DC 5.0 V(由 USB Type-C 连接器提供)

电池寿命*

约 8 小时,输出功率 30 mW(UC、U、CE、LA、CN 型号)
约 10 小时,输出功率 10 mW(J、E、KR 型号)*电池寿命由两节索尼 LR6/AA 型碱性电池在 25 °C (77 °F) 条件下测得。

操作温度

0 °C 至 50 °C(32 °F 至 122 °F)

储存/运输温度

-20 °C 至 +55 °C(-4 °F 至 +131 °F)

尺寸

63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.)(宽/高/深,不含天线)

重量

约 83 g (2.9 oz)(不含电池)



The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
The UWP-D21 bodypack wireless microphone package includes the UTX-B40 bodypack transmitter, URX-P40 receiver, ECM-V1BMP omni-directional lavalier microphone and accessories.



  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line input
  • Channel memory for fast switching between receiver frequencies for two transmitter operation
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)*


* For details on cameras that support this function, visit the Sony website.

属性

Digital audio processing for high quality sound

Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.

Seamless camcorder integration

Integration with compatible* Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status and transmitter low battery alert in the camera’s viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronised power on/off between camera and receiver for more effective power management.

* See details on SMAD-P5 for compatibility information

Fast, easy frequency setting

Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.

Light, compact design

Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver’s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.

规格

全部展开全部折叠

URX-P40 portable receiver

Oscillator type

Crystal-controlled PLL synthesizer

Reception Type

True diversity method

Antenna Type

1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies

14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz

Frequency Response

23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (typical) (J model)

Signal-to-Noise Ratio

60 dB (1 kHz sine wave, 5 kHz modulation)

Distortion (T.H.D)

0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay

Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)

Audio Output Connector

3.5 mm diameter 3-pole locking mini jack, external connection

Audio Output Level

–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
–20 dBFS (external connection, digital output, 0 dB audio output level)
–50 dBFS (external connection, analog output, 0 dB audio output level)

Analog Audio Output Adjustment Range

-12dB - +12dB (3dB step)

Headphone Output Connector

3.5 mm diameter mini jack

Headphone Output Level

Max. 10mW (16-ohm)

Tone Signal Frequency

In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display

OLED

Power Requirements

DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life*

Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions

63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)

Mass

Approx. 131 g (4.6 oz) (excluding batteries)

UTX-B40 bodypack transmitter

Oscillator Type

Crystal-controlled PLL synthesizer

Antenna Type

1/4 λ wave length wire antenna

Carrier Frequencies

14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz

RF Output Power

30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type

Elect retcondenser

Directivity

Omni-directional

Input Connector

3.5 mm diameter 3-pole locking mini jack

Reference Audio Input Level

–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
+4 dBu (LINE input)

Audio Attenuator Adjustment Range

0 dB to 27 dB (3 dB steps)

Frequency Response

23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio

60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)

Distortion

0.9% or less (–60 dBV, 1 kHz input)

Audio Delay

Approx. 0.35 ms

Tone Signal Frequency

In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display

OLED

Power Requirements

DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery life*

Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature

-20 °C to +55 °C (–4 °F to +131 °F)

Dimensions

63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)

Mass

Approx. 83 g (2.9 oz) (excluding batteries)
