阿兹丹 Azden SGM-3500 Broadcast Spec Shotgun Microphone

Seven inch long supercardioid shotgun microphone for professional broadcast and film applications.

Features

• Supercardioid polar pattern
• Extremely low self-noise at 13 dB (A weighted)
• Tuned for speech capture: frequency response boosted around 5 kHz to 10 kHz
• All metal brass body for optimal RF rejection and durability
• Gold-plated XLR connector for high resistance to corrosion
• High sensitivity mic element captures level of detail beyond any other Azden microphone
• Wide frequency response from 40 Hz to 20,000 Hz
• 10 Year Warranty unmatched by other microphones in this class

Adhering to Azden’s highest engineering and performance standards, the 3500 series shotgun microphones are handcrafted in Japan to meet the stringent demands of video and broadcast professionals.

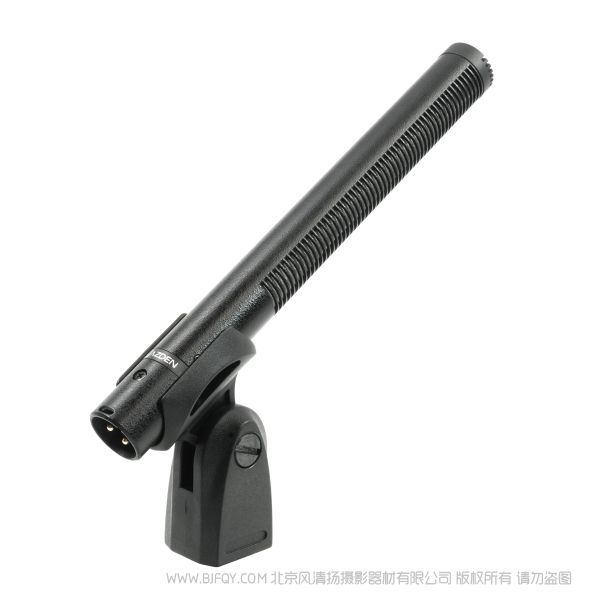

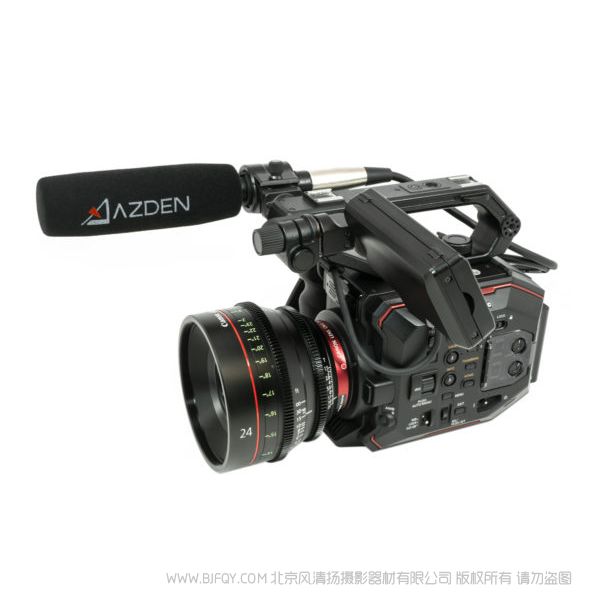

The SGM-3500 is a 7” long shotgun microphone with a supercardioid pickup pattern for excellent side noise rejection. The relatively shorter length of the 3500 makes it a practical choice for on-camera mounting with cinema and broadcast cameras, while still being perfectly well suited for boom-pole work.

At the core of the microphone’s high performance is Azden’s newly developed high-sensitivity microphone element, capable of capturing rich detail, with ultra-low self noise and a wide frequency response tuned especially for speech.

The all metal brass body ensures durability and provides excellent rejection of external RF sources. A gold-plated XLR connector prevents corrosion and ensures good connectivity.

The SGM-3500 is backed by Azden’s longest warranty term of 10 years (with online registration) unmatched by other brands of microphones in its performance class.

Included with the SGM-3500 microphone is an articulating mic clip with 5/8″ and 3/8″ thread adapters, a high-density foam windscreen and a deluxe hardshell case. Each microphone is also tested before leaving the factory and is accompanied by its own frequency response chart.

For outdoor wind protection, both the SWS-100 and SWS-250 windshields are compatible.

Mic Element: Condenser
Freq. Response: 40 Hz – 20 kHz
Polar Pattern: Supercardioid
Sensitivity: -31 dB at 1 kHz (0 dB = 1 V/Pa)
Dynamic Range: 118 dB
Impedance: 120 Ω (at 1 kHz)
Max Input SPL: 130 dB SPL (1 kHz at 1% T.H.D.)
S/N Ratio: 82 dB (1 kHz at 1 Pa)
Power Requirement: 48 V DC Phantom (±4 V )
Connector: 3-pin XLR
Dimensions: 180 mm x φ19 mm (7.08” x φ0.75”)
Weight: 140 g (5.0 oz)
Accessories: hardshell case, mic clip, windscreen
