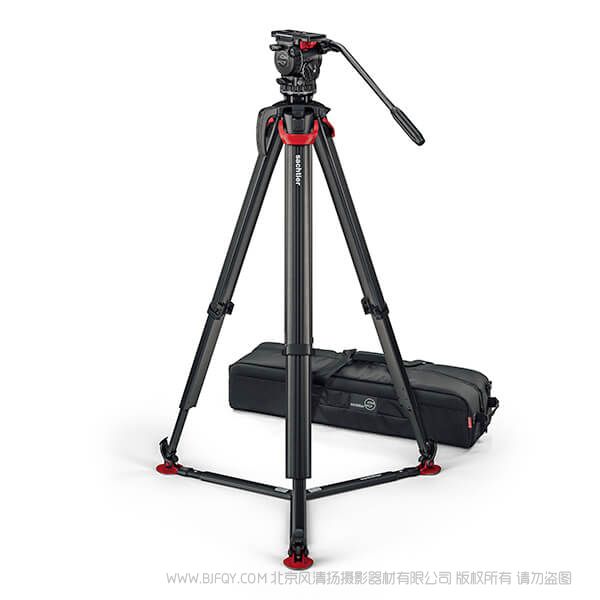

Sachtler®（萨科勒） System aktiv8T flowtech75 GS 液压云台地置三脚架套装 S2068T-FTGS

萨拿 Aktiv 8T FT 75 地置套装

75mm 球碗，快速云台脚架组合，地置承重0-12kg 自重6.6KG

工作高度 23-176cm  收纳长度 85cm

aktiv 8T云台（S2068T）+Flowtech 75 地置三脚架（4587）+脚架包（9116）

Sachtler System aktiv8T x flowtech75 液压云台系统（快装）配地板延伸器

系统仅重 6.6 千克（14.5 磅），不仅体积轻巧，而且经久耐用，是性能与品质并重的摄影良伴，较适合与不重于 12 千克（26.5 磅）的中型录象机或数字电影摄影机配合使用。具有 15 个动平衡档位，确保您能快速精确地平衡摄像机装置。系统提供七种阻尼设置，可流畅快捷调整阻尼性能，而不会引起摇晃或振动。创新的 PrismBubble 水平气泡采用发光设计，从任何高度或角度都能够看清，方便确认摄影机是否处于水平状态。

液压云台

aktiv8T 液压云台采用独一无二的 SpeedLevelTM 技术，调平并锁定云台瞬间即可完成，确保不会错过任何稍纵即逝的拍摄机会，不管是拍摄记录片，还是为企业公司或新闻组织录制视频，都能为您捕捉较完美的镜头。此外，革命性的 SpeedSwapTM 系统，也成就了三脚架和滑轨之间的无缝转换，赋予操作人员更大的灵活性。

三脚架

aktiv8T 和 flowtech® 75 aktiv 完美结合，提供灵活的三脚架解决方案，让您以较短时间捕捉较精彩的镜头。flowtech® 配有多功能铰链锁，加上没有球碗夹，三脚架可以完全贴地放平，方便捕捉极低角度的镜头，并提供了较宽的高度范围。flowtech® 三脚架采用两段式碳纤维支腿设计，抗扭刚度高，顶部配备独特的快速锁定机构，使摄影师能够快速开合并调整三脚架。三脚架符合人体工程学设计，可舒适地扛于肩上或用随附的手把轻松运输 ，让您随时随地发挥无限创造力。此外，flowtech® 也配备可快速安装的地板延伸器，摄影师可用脚轻松调整延伸器的延长距离，而磁锁则在运输过程中让您迅速锁定合起的脚架。aktiv8T 液压云台系统包括较新改良的 flowtech®75 aktiv 三脚架，为摄影师带来极致的多功能体验，实现较佳性能，提高工作效率。

产品线

aktiv

手柄数量

1

较大承重

0 to 12 kg

球碗口径

75 mm

延伸器类型

Ground spreader

材料

Carbon Fibre

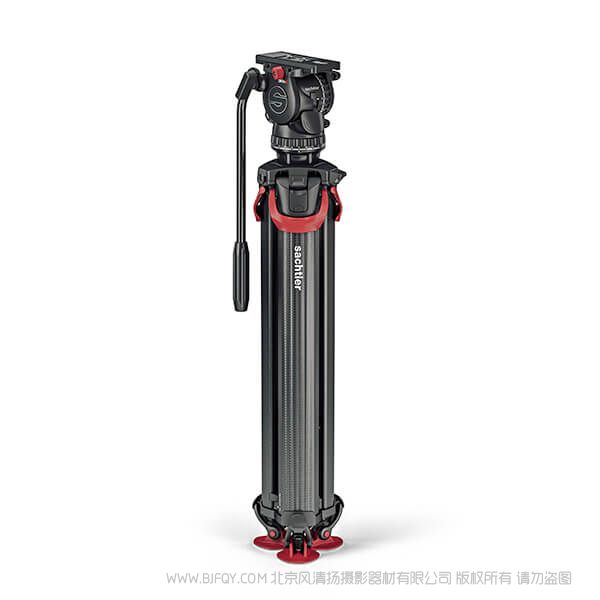

收纳长度

850 mm

三脚架级数

2

重量

6.60 kg

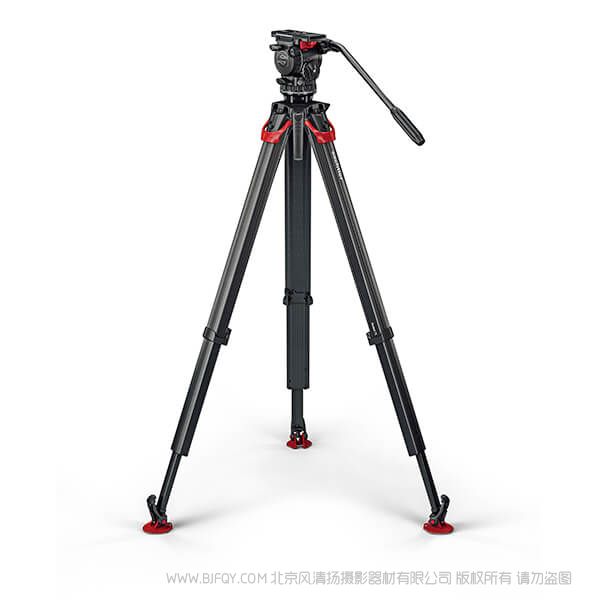

高度范围 - 不含延伸器

0.23 to 1.70 m

高度范围 - 含地板延伸器

0.56 to 1.76 m

温度范围

-40 to 60 °C

俯仰范围

90° to -70°

托板滑动范围

60 mm

接口兼容性

Touch & Go

动平衡

15 个动平衡档位 + 0

阻尼

7 种阻尼设置 + 0

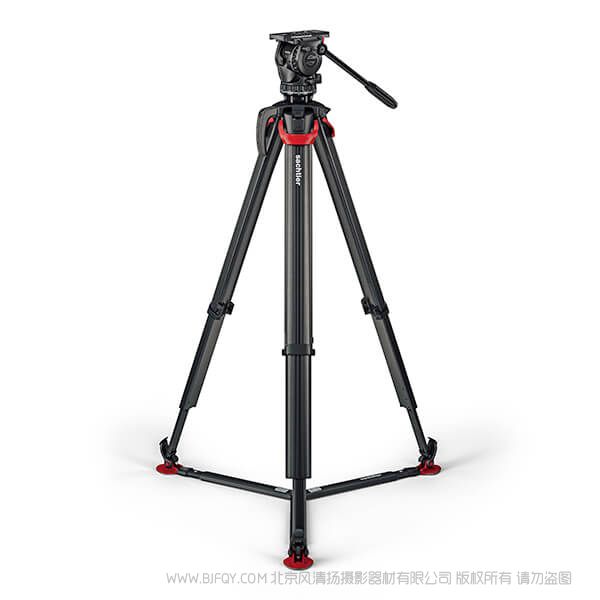

Sachtler System aktiv8T flowtech75 with Touch&Go and ground spreader

Weighing only 6.6 kg (14.5 lbs.) the aktiv8T flowtech75 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing of your camera. Seven drag settings provide smooth and fast options to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

Fluid Head

The aktiv8T fluid head with the unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, news or wildlife applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Tripod

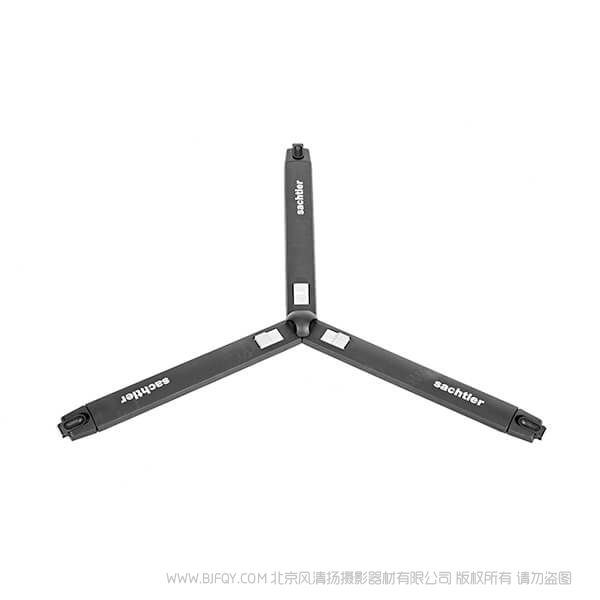

Capture the widest range of shots in the shortest time with aktiv8T combined with flowtech75. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a quick-attach ground spreader with foot controls for adjustment. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.

Range

aktiv

Pan bar count

1

Payload

0 to 12 kg

Bowl size

75 mm

Weight

6.60 kg

Spreader type

Ground spreader

Material

Aluminium

Transport length

850 mm

Tripod stages

2

Height without spreader

0.23 to 1.70 m

Height With Ground Spreader

0.56 to 1.76 m

Temperature range

-40 to 60 °C

Tilt range

90° to -70°

Sliding range

60 mm

Interface Compatibility

Touch & Go

Counterbalance

15 + 0 counterbalance steps

Drag

7 + 0 drag settings
