Sachtler®（萨科勒）S2072S-FT System aktiv10 flowtech100 液压云台 100碗口 三脚架 套装 （不含伸展器）

Sachtler System aktiv10 flowtech100 with sideload

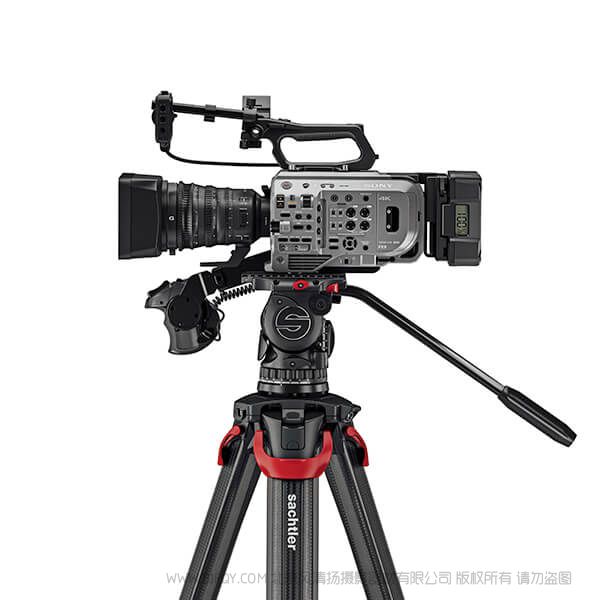

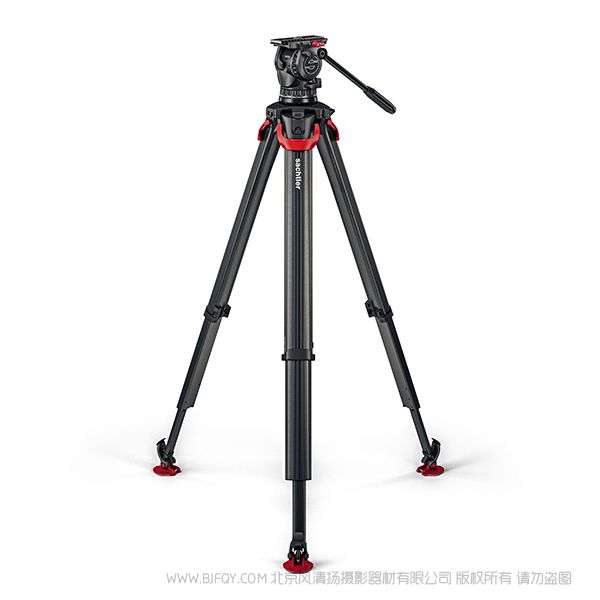

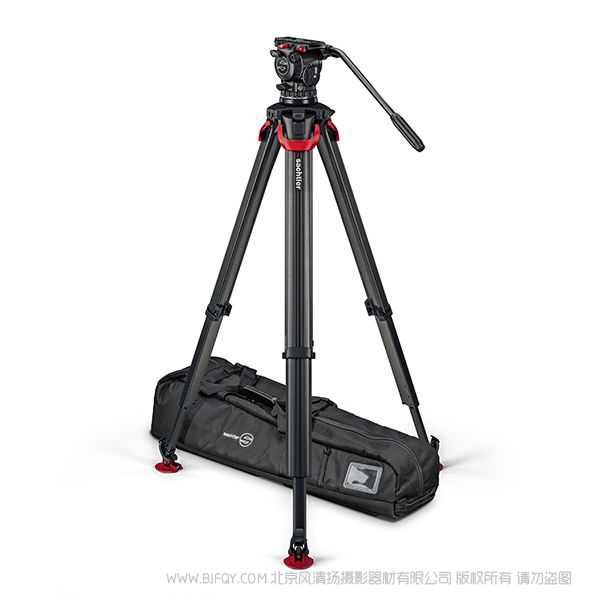

Weighing only 6.3 kg (13.9 lbs.) the aktiv10 flowtech100 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital Cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing of your camera. Its sideload mechanism with a long sliding range of 120 mm make loading and positioning the camera quick and easy. Seven drag settings provide smooth and fast to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

Fluid Head

The aktiv10 fluid head with unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, news or wildlife applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Tripod

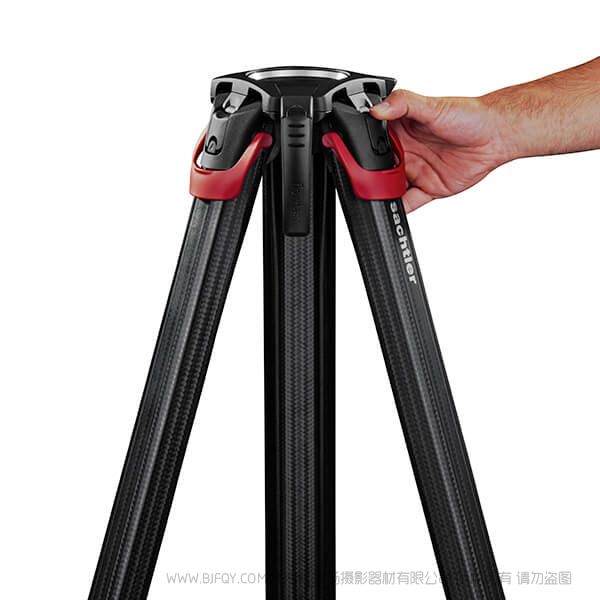

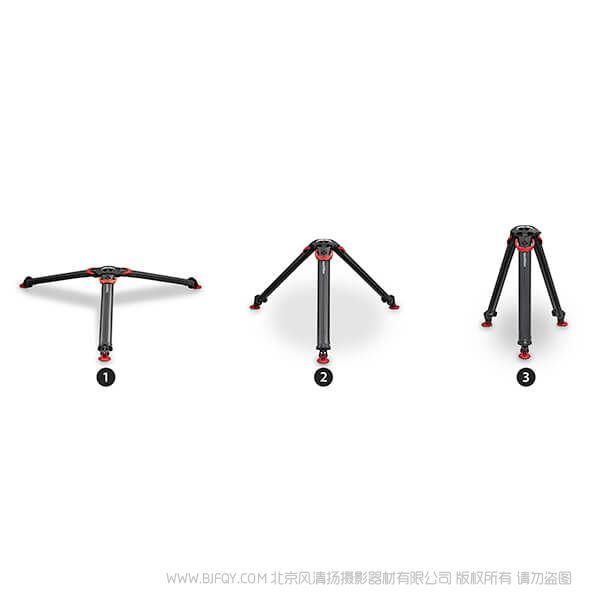

Capture the widest range of shots in the shortest time with aktiv10 combined with flowtech100. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a quick attach rubber foot mechanism. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.

Range

aktiv

Pan bar count

1

Payload

0 to 12 kg

Bowl size

100 mm

Weight

6.30 kg

Spreader type

No spreader

Material

Aluminium

Transport length

870 mm

Tripod stages

2

Height with spreader

0

Height without spreader

0.25 to 1.72 m

Height With Ground Spreader

0

Height With Mid Spreader

0

Weight without spreader

0

Temperature range

-40 to 60 °C

Tilt range

90° to -70°

Sliding range

120 mm

Interface Compatibility

Sideload

Counterbalance

15 + 0 counterbalance steps

Drag

7 + 0 drag settings
