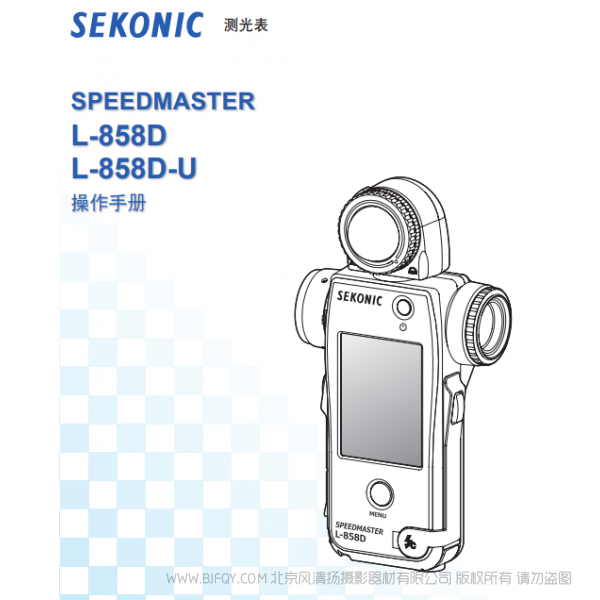

世光 L-858D L-858D-U测光表中文说明书测光温说明书下载使用手册 pdf 免费操作指南如何使用快速上手附带固件升级地址

更新时间2022/03/03 点击数 9007 11.6MB 点我下载

Sekonic L-858D-U SPEEDMASTER Light Meter

CAT#

401-858

Key Features

Incident Metering for Ambient & Flash
1° Spot Metering with Viewfinder
Measuring Range: -5 to 22.9 EV (ISO 100)
Illuminance Range: 0.1 to 2,000,000 lux
Extensive Range of Cine & Video Settings
HSS Flash & Flash Duration Measurements
Flash Analyzing Function; Extended Range
2.7" Touchscreen LCD; All-Weather Design
Optional Radio Control Modules For broncolor, Elinchrom, Godox/Flashpoint, Phottix and PocketWizard

Data Transfer Software for MAC

IMPORTANT!

Customers who already installed DTS version 6.0 or earlier, before installing new version below, completely remove any previous versions and see this instruction and note.
Please see the Software Guide for installation.
Turn off firewalls and anti-virus programs during the installation process.
Compatible with L-858 series, L-478 series and L-758 series.
If you fail installing the latest Data Transfer Software / Utility Software due to Gatekeeper by Apple inc. Please see this instruction.
APFS Restrictions
Depending on the specification of the APFS file system, file display may not be in alphabetical order. Therefore, when saving multiple images in the same folder, it is difficult to find the necessary image for profile creation.
Please kindly create a subfolder and manage related images by combining relevant images for each profile.
Applicable Product
- Mac Computer Products installed SSD model (mac OS 10.13 High Sierra and later)
- A Device formatted as APFS (mac OS 10.12 Sierra and later)

Version 6.10 for OSX 10.15 Catalina compatible with L-858D, L-758 and L-478 series

Download DTS ver. 6.10 for OSX 10.13 - 10.15 (9.7 MB)
Software Guide (4.4 MB)

Requirements of Version 6.10

Software	Data Transfer Software USB Driver
Software
OS *1	MAC OS X 10.13 MAC OS X 10.14 MAC OS X 10.15
Models	Macintosh with a standard USB interface 2 3
CPU	Intel CPU (compatible with operating conditions of OS) *2
RAM	Compatible with operating conditions of OS
Hard disk space	Same as above
Display	Screen resolution: At least 1024 x 768 Color quality: At least 16-bit

*1 If you are using a Macintosh computer, be sure to use the Macintosh version of the software. Operation of the Windows version is not guaranteed when running in Virtual PC for the Mac.

*2 Intel CPU (except Core 2 Duo and earlier) dedicated. 68k computers and Power PCs not supported.

*3 Please note the following:
     - The operating system must be the one pre-installed on the computer.
     - Proper operation may not be possible on certain Macintosh models and configurations.
     - Proper operation is not guaranteed on a Macintosh with an upgraded operating system
       or an add-on USB interface.
     - Proper operation is not guaranteed over connections through a USB hub.

Data Transfer Software for WINDOWS

IMPORTANT!

Customers who already installed Data Transfer Software version 5.00, update the software by using "UPDATE" function in Data Transfer Software. However, when updating from version 5.01 with Windows 10, User Account Control may block the updating. In this case, please uninstall the old version 5.01, and install new version 6.10.
Customers who already installed DTS version 3.093 or earlier, before installing new version below, completely remove any previous versions.
Please see the Software Guide for installation.
Turn off firewalls and anti-virus programs during the installation process.
Version 5.10 is newly compatible with L-858 series in addition to L-758 and L-478 series. Version 5.01 or earlier is compatible with only L-758 and L-478 series.

Version 6.10 for Windows 8.1 and 10 compatible with L-858, L-758 and L-478

Download DTS 6.10 (42.3 MB)

Software Guide (4.6 MB)

Requirements

Software	USB Driver
Software
OS	Windows® 8.1 (32/64-bit version) 1 Windows® 10 (32/64-bit version) 2
Models	PC with a standard USB interface *3
CPU	Compatible with operating conditions of OS
RAM	Same as above
Hard disk space	Same as above
Display	Screen resolution: At least 1024 x 768
Color quality:	At least 16-bit

Windows 8.1 / Windows 8.1 Pro / Windows 8.1 Enterprise.
Home / Pro / Enterprise.
Please note the following:

The operating system must be the one preinstalled on the computer.
Proper operation may not be possible on certain computer models and configurations.
Proper operation is not guaranteed on a computer with an upgraded operating system or an add-on USB interface, a homemade computer, a shop-made computer, or in an emulator environment (such as Virtual PC).
Proper operation is not guaranteed over connections through a USB hub.

Firmware

SpeedMaster L-858 Series Firmware

IMPORTANT!:
